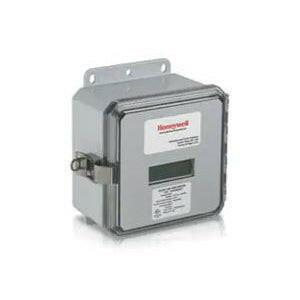

Three-phase kWh/kW (energy only and/or demand) meter used to monitor electric power usage of individual loads after the utility meter.
E-Mon Class 2000 Meters are designed to provide the basic building blocks of an affordable, effective and scalable energy management system. These easy to install meters can monitor anything from a specific load panel to an entire building.
Energy usage data can be viewed via meters, LCD display for easy walk up and read, monitoring of energy consumption. Remote metering via E-Mon Energy Automatic Meter reading (AMR) or Web-Mon Web Enabled Monitoring systems is also easily interfaced for tenant billing energy management and cost allocation.
Features & Benefits:
Direct-read 2-line alpha-numeric LCD display without multiplier displays cumulative kWh and “real-time” kW load
Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure
Current sensor installation diagnostics
Fixed pulse output
Maintains reading in the event of power failure
Meter can be used on the following configurations: 2-phase/3-wire and 3-phase/3- or 4-wire with included current sensors from 100-3200A
A demand option displays the kW peak demand over a 15- or 30-minute demand interval
Industrial grade JIC steel and optional NEMA 4X polycarbonate enclosure (standard) with padlocking hasp & mounting flanges for indoor/outdoor installation.
