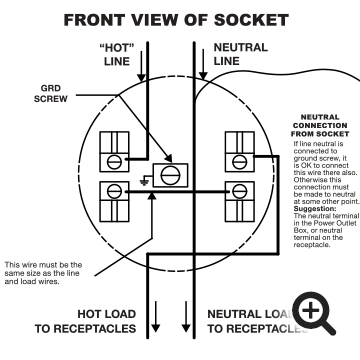

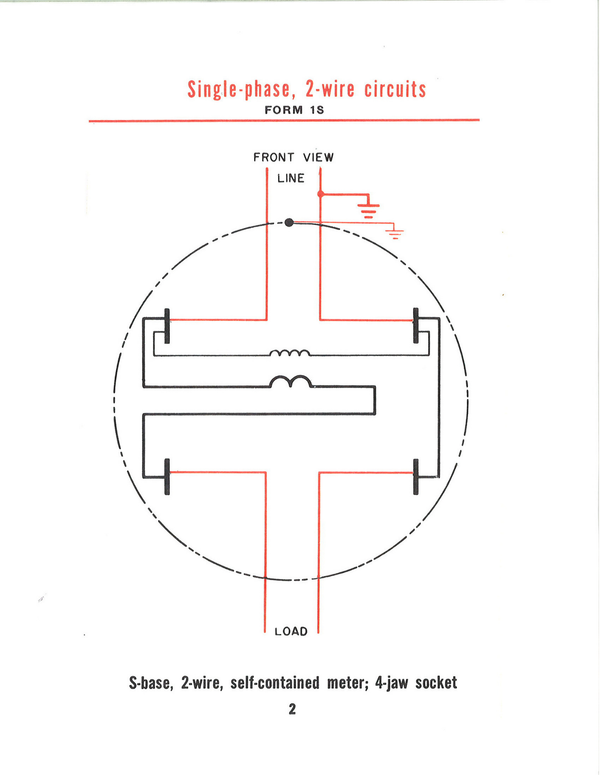

Single Phase – Form 2S for 120V Circuit

FORM 2S Need a meter for a 120 volt circuit? Order our 240 volt meter. This diagram shows how to wire it for 120V.

🔗 Click here to view and print the full size diagram.

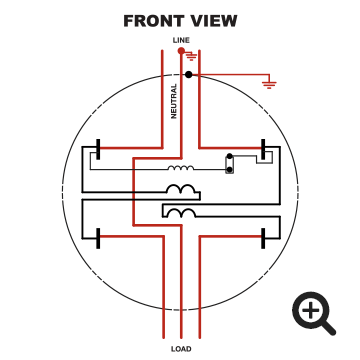

Single Phase – Form 2S for 240V Circuit

🔗 Click here to view and print the full size diagram.

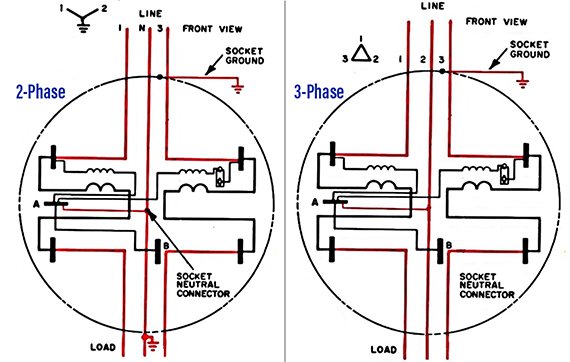

2, 3 Phase – Form 12S

Click links below to download and print the full size diagrams:

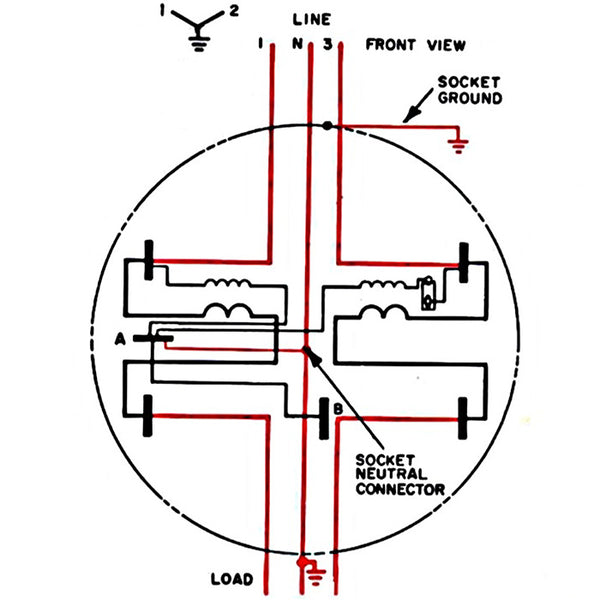

🔗 Single Phase Network, 2 Phase , 3 wire, 120/208 volts

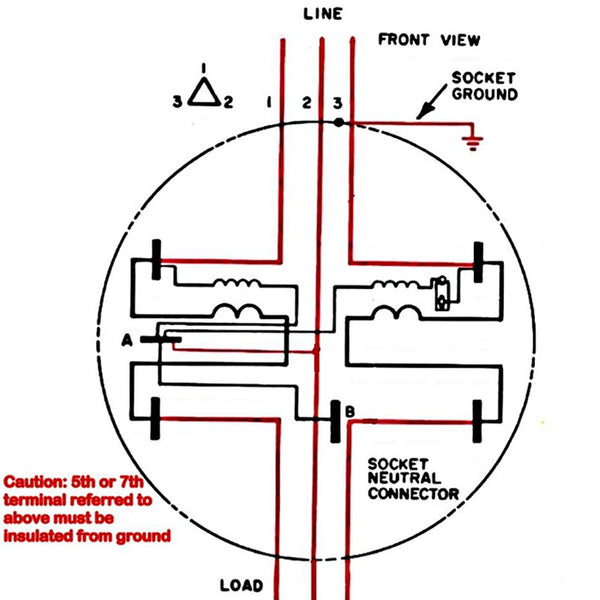

🔗 Three Phase, 3 Wire 277/480 volts

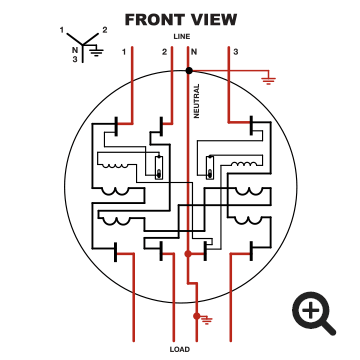

3 Phase, 4 Wire WYE – Form 14S

🔗 Click here to view and print the full size diagram.

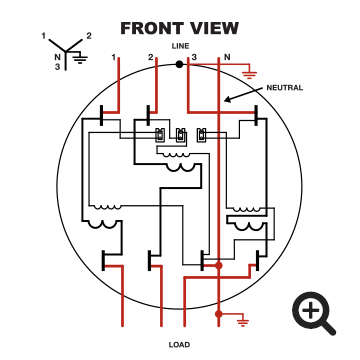

3 Phase, 4 Wire – Form 16S

🔗 Click here to view and print the full size diagram.

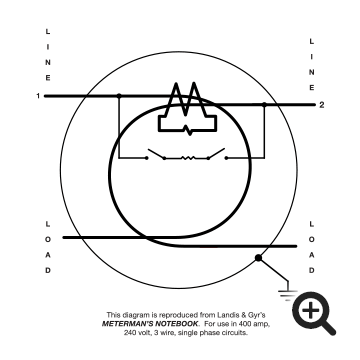

Single Phase – Form 2K

🔗 Click here to view and print the full size diagram.

Single Phase – Form 2K

🔗 Click here to view and print the full size diagram.

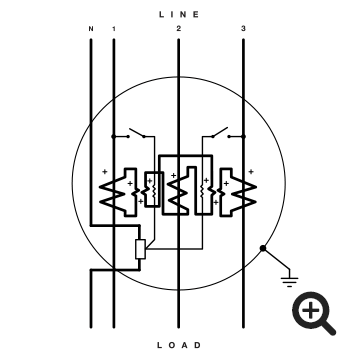

3 Phase, 4 Wire – Form 14K

🔗 Click here to view and print the full size diagram.
