4-GE-750X133629

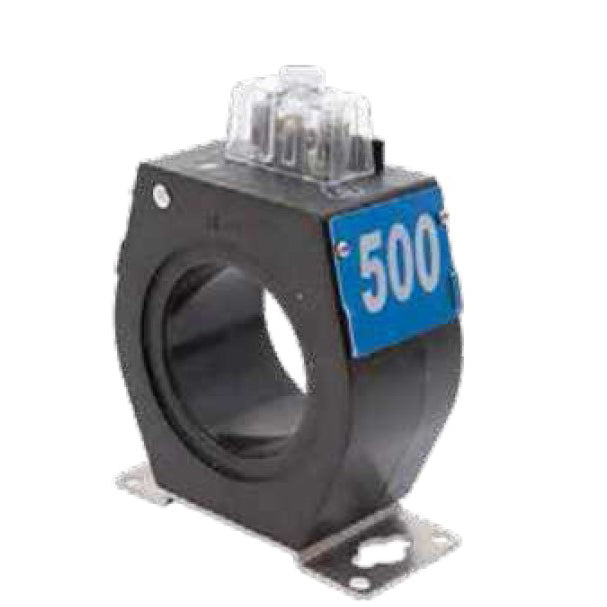

Model JAK-0W EncompassTM
Extended Range Revenue Metering Current Transformer

Application
EncompassTM is an extended range revenue metering current transformer. Model JAK-0W
is designed for both indoor and outdoor service. Suitable for operating meters and
instruments, on both single-phase two- wire circuits and polyphase circuits. The window
type transformer can also be used on three-wire single- phase circuits.

• Features
  • Voltage Class: 0.6 kV
  • Frequency: 50-60 Hz
  • Window Size: 3.062”
  • Insulation Level: 10 kV BIL
  • Application: Indoor/Outdoor
