78AX100086

Manufacturer's Part #: 78AX100086

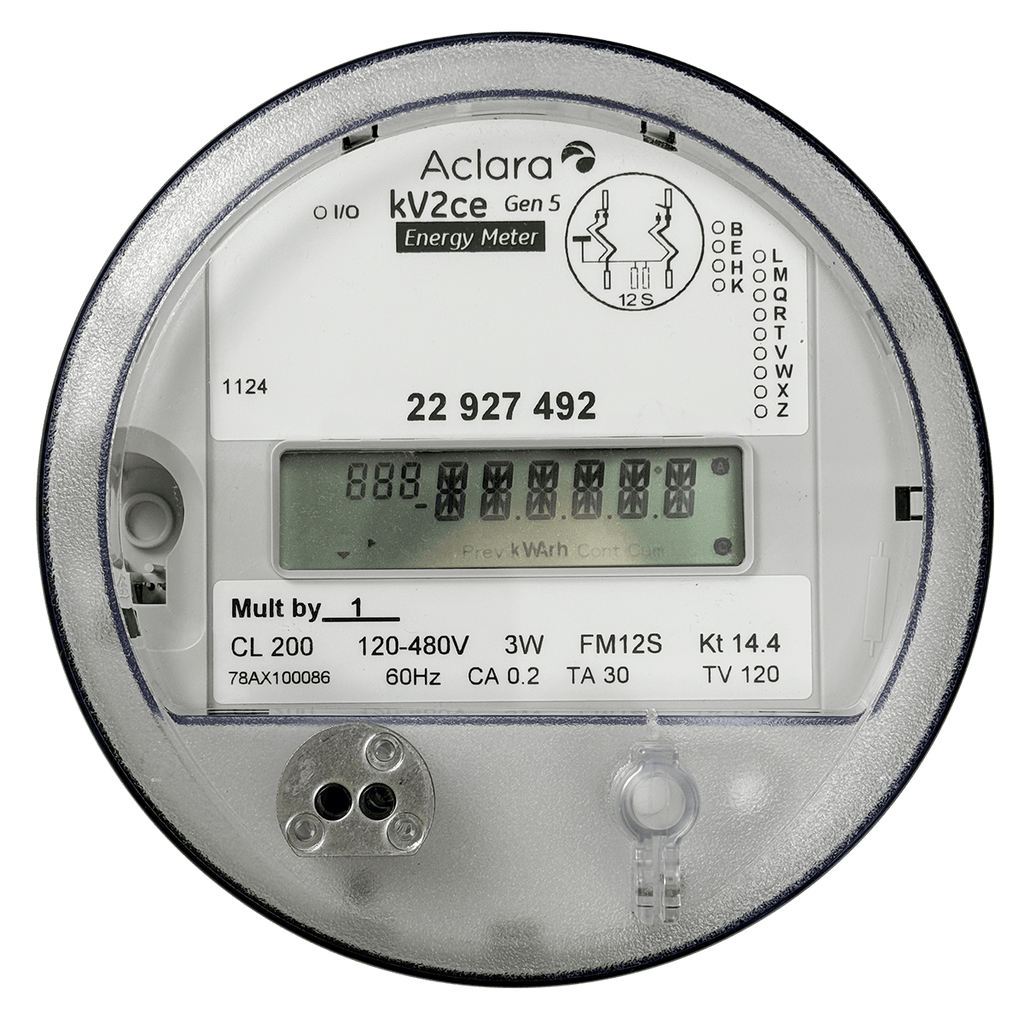

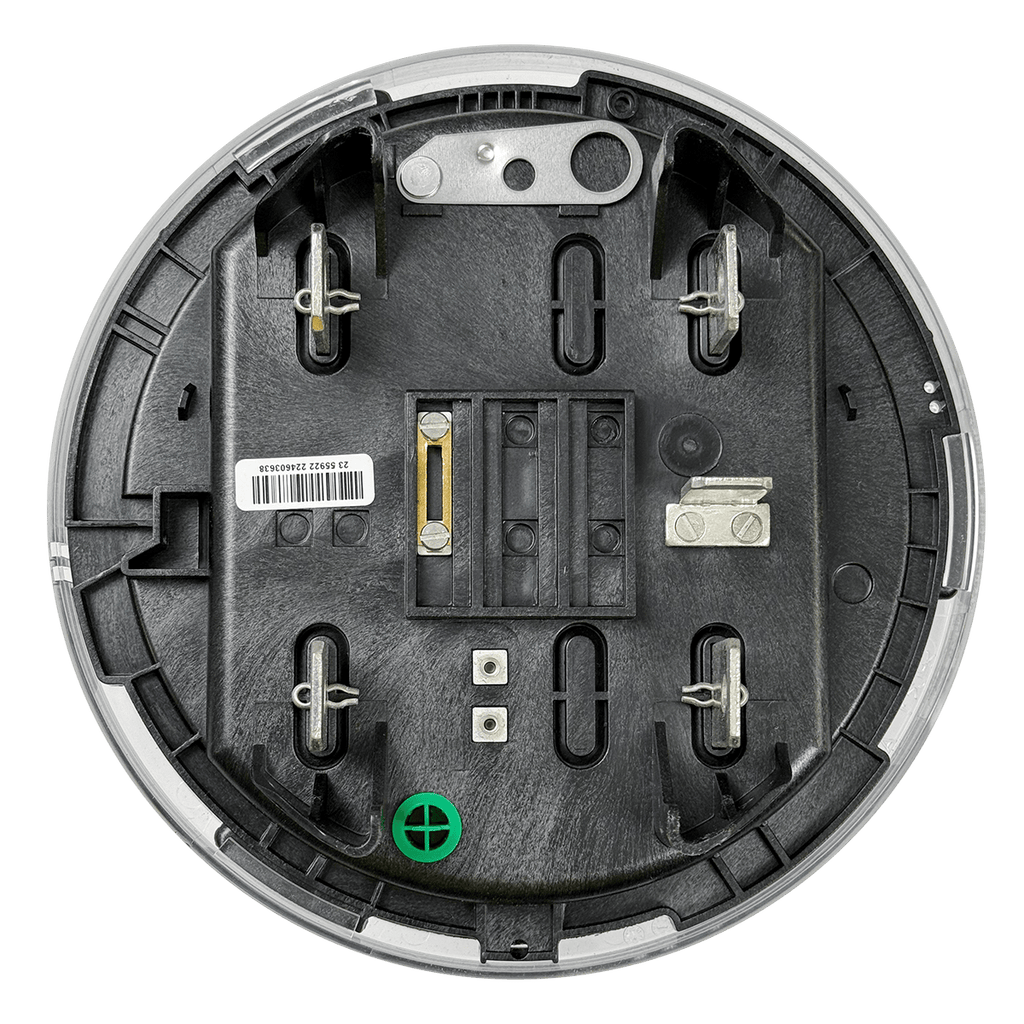

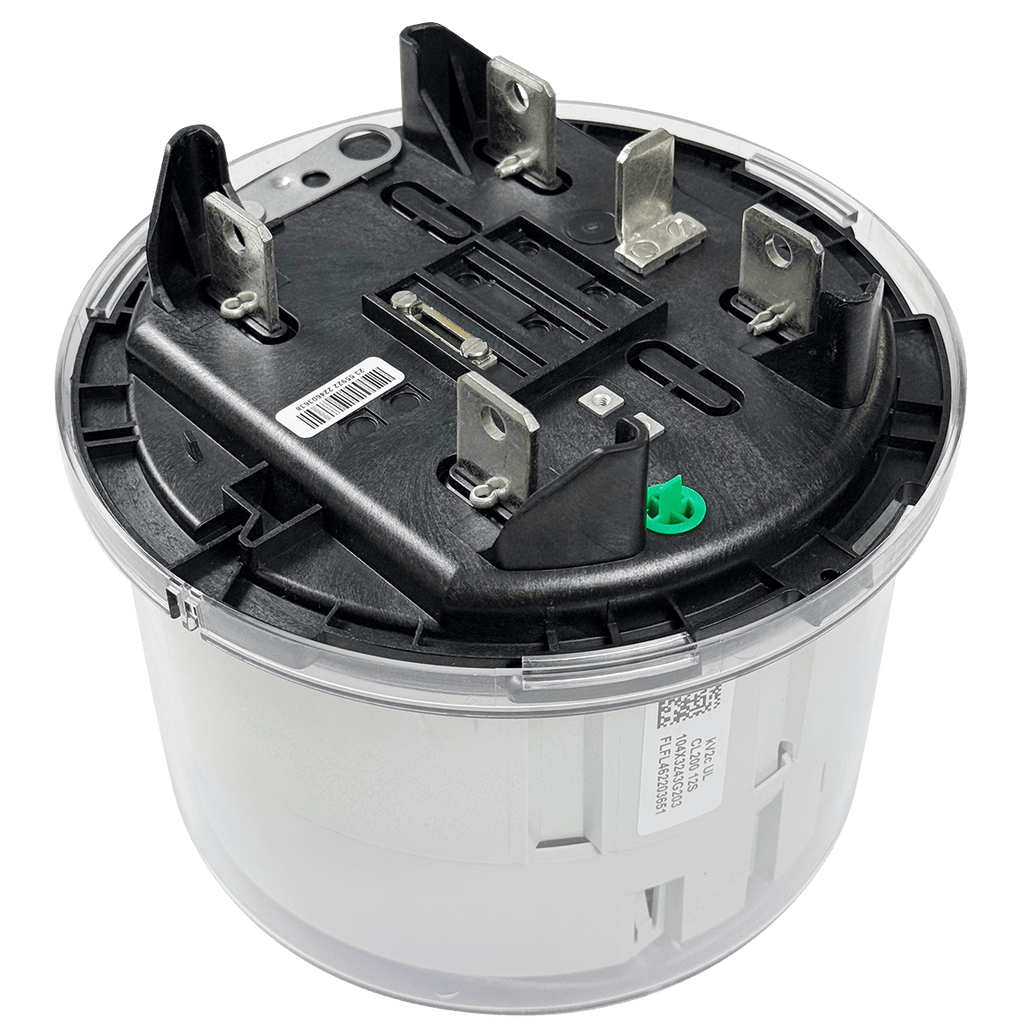

Aclara Gen 5 kV2ce  FM 12S 200A 120-480V 2/3P 3W

• Utility Grade Meter

• Meter without Demand - Reads Energy (kWh) only

• 200 Amps

• Service Voltages 120 Network, 120, 240 or 480


Matching Socket (required):
5 terminal, 100 amp
5 terminal, 200 amp

View the wiring diagram for this meter.

Add Output Pulse to any meter (Pulse value = 10 watthours) for $70.00 additional charge
