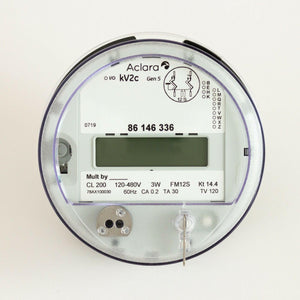

Measure energy use in kWh with the Aclara kV2c Gen 5 utility-grade demand meter, available with 15-minute or 30-minute kW demand intervals. This Form 12S, Class 200 meter is rated for 120–480V, 2/3-phase, 3-wire service.
Manufacturer's part number: 78AX100030
Technical specifications
- Manufacturer: Aclara
- Model: kV2c Gen 5
- Meter form: 12S
- Current rating: Class 200 (200A)
- Voltage rating: 120–480V
- Listed service voltages: 120 Network, 120V, 240V or 480V
- Service configuration: 2/3-phase, 3-wire
- Measurements: kWh and kW demand
- Demand interval options: 15 minutes or 30 minutes
Required matching socket
A matching five-terminal socket is required. Confirm the socket's amperage rating and compatibility with your service before ordering. The meter's Class 200 rating does not make a 100A socket suitable for a 200A service.
Wiring diagram
View the Form 12S wiring diagram for this meter. Confirm that your service configuration matches the diagram before ordering.
Optional pulse output
Pulse output is available for an additional $170.00. Pulse value: 10 watt-hours (Wh) per pulse. Contact us before ordering if you need help arranging this upgrade or confirming compatibility.
