4-MA-K4527
Manufacturer's Part #: K4527

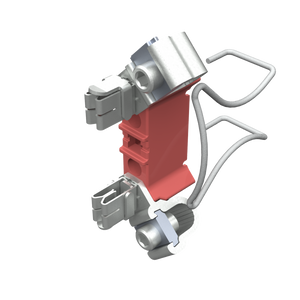

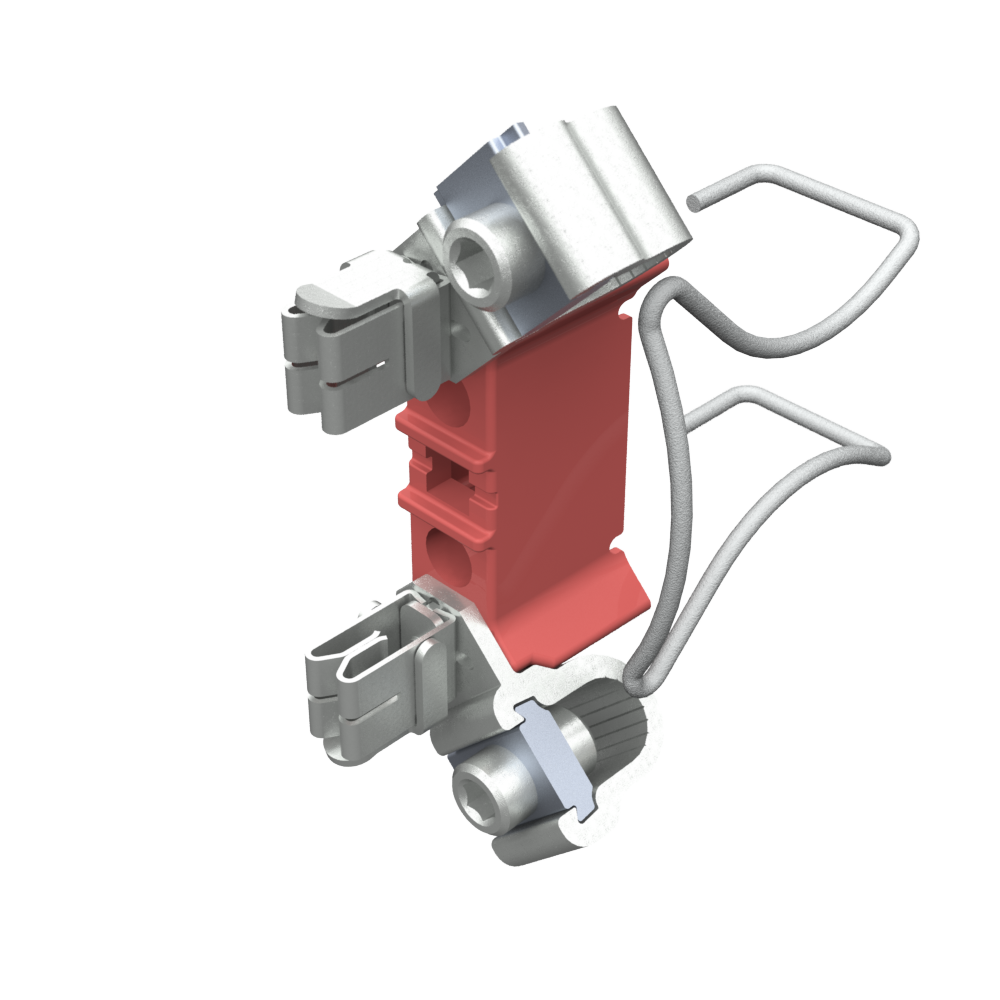

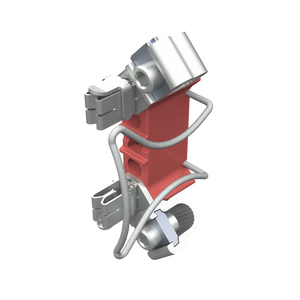

The Milbank K4527 Replacement Meter Block is a genuine OEM component designed specifically for Milbank 200A single-phase (1Ø 3W) meter sockets, offering electrical contractors a faster and more cost-effective solution for meter socket repair.
When meter jaws fail due to overheating, corrosion, or loose connections, replacing the entire meter socket can be labor-intensive and expensive. The K4527 provides a targeted solution by allowing you to replace only the internal meter block, eliminating the need for full enclosure replacement.
This makes it an ideal choice for 200A meter socket repair, meter jaw replacement, and electrical service maintenance, helping contractors reduce both material costs and installation time.
If You Have One of These Milbank Meter Sockets…
You may not need to replace the entire unit
-
U7021 Series
-
U7040 Series
-
U3850 Series
-
U1980 Series
Note:
The Milbank K4527 replacement block is designed for use in
both steel (U) and
aluminum (UAP) Milbank meter sockets listed above.
Replacement Block for Milbank U7040-XL-TG-HSP & UAP7040-XL-TG-HSP
| Specifications | |
|---|---|
| Amperage Rating | 200 Ampere |
| Application | Metering Accessory (MASSC) |
| Brand Name | Milbank |
| Connection | LayinLugs |
| Mounting | Surface Mount |
| Number Of Terminals | 2 |
| Special Features | WireMeterSupports |
| Type | Block Assembly |
| Voltage Rating | 600 Volts Alternating Current |
| Wire Size | 6 AWG to 350 kcmil |
| Height | 5.0 IN |
| Length | 7.0 IN |
| Width | 3.625 IN |
